Internal actions are built-in actions provided by Buttons itself, as opposed to actions from external connections. They control variables, navigation, routing, surfaces, and other core platform features.
Available in Workflow indicates whether the action can be used inside a Workflow. Actions marked No are only available on buttons.

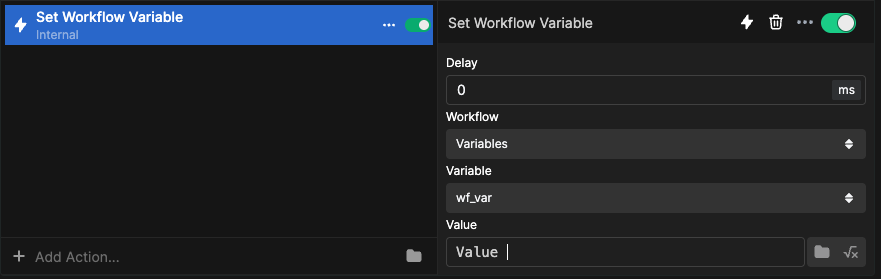

Set Workflow Variable
Available in Workflow: No
Sets a variable on a specific workflow by ID.
Set Section Variable
Available in Workflow: Yes

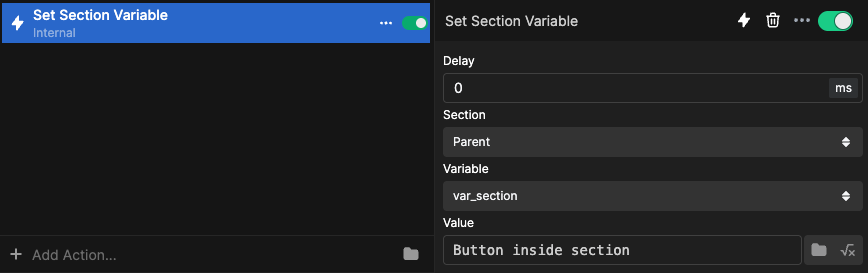

Setting a section variable inside the section.

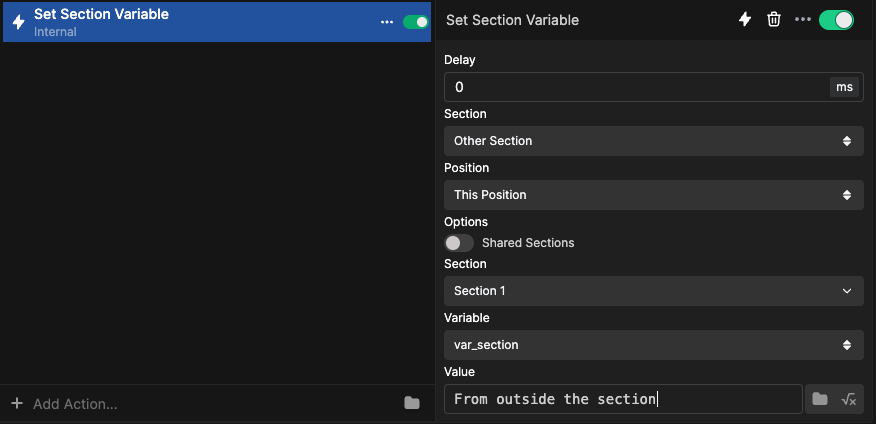

Setting a section variable in the same position from outside of the section.

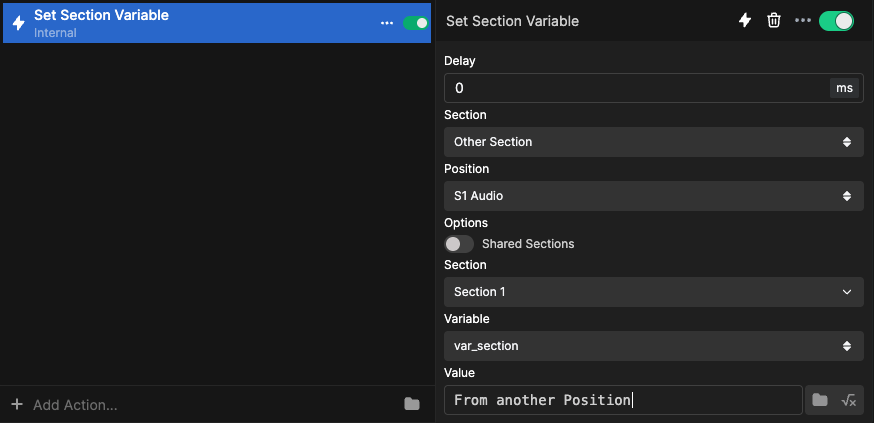

Setting a section variable from another position.

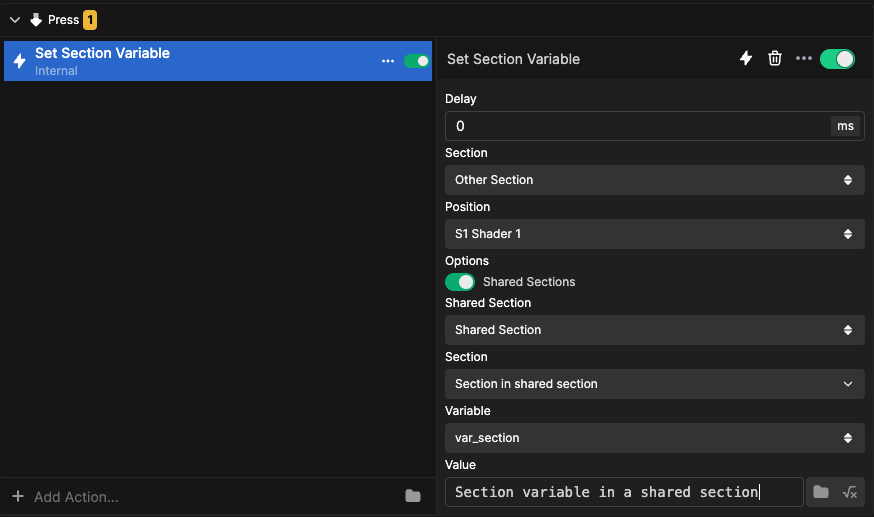

Setting a section variable in a shared section docked in a specific position

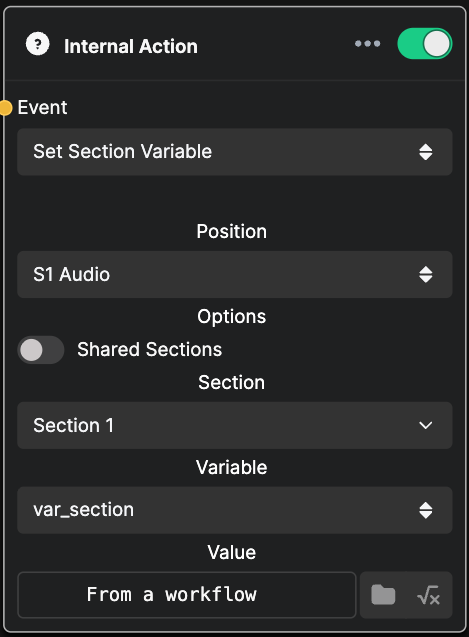

Setting a section variable from a workflow
| Parameter | Type | Required | Description |
|---|---|---|---|
target | 'parent' | 'id' | Yes | parent uses the button's own section; id requires explicit IDs below |
variableId | string | Yes | ID of the variable to set |
value | string | number | boolean | null | No | Value to assign |
sharedSections | boolean | No | Whether the target is a shared section |
sharedSectionId | string | No | ID of the shared section (required when sharedSections is true) |
positionId | string | No | Position ID (for shared sections) |
sectionId | string | No | Section ID (required when target is id) |

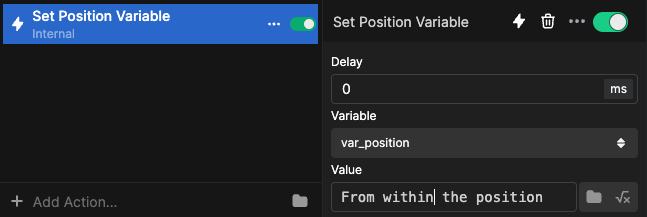

Set Position Variable
Available in Workflow: Yes
Sets a variable on a position. Can target the current position or a specific position by ID.
| Parameter | Type | Required | Description |
|---|---|---|---|
target | 'position' | 'id' | Yes | position uses the current position; id requires positionId |
variableId | string | Yes | ID of the variable to set |
value | string | number | boolean | null | No | Value to assign |
positionId | string | No | Position ID (required when target is id) |
Set Button Variable
Available in Workflow: Yes
Sets a variable on a button. Can target the current button or a specific button by ID.
| Parameter | Type | Required | Description |
|---|---|---|---|
target | 'self' | 'id' | Yes | self uses the current button; id requires explicit IDs below |
variableId | string | Yes | ID of the variable to set |
value | string | number | boolean | null | No | Value to assign |
sharedSections | boolean | No | Whether the target is in a shared section |
sharedSectionId | string | No | ID of the shared section |
positionId | string | No | Position ID |
buttonId | string | No | Button ID (required when target is id) |
Set Active Step Index
ID: button_set_activeStepIndex
Available in Workflow: No
Navigates a button to a specific step. Step index is 1-based.
| Parameter | Type | Required | Description |
|---|---|---|---|
target | 'self' | 'id' | Yes | self uses the current button; id requires explicit IDs below |
stepIndex | number (min: 1) | Yes | Step to activate (1-based) |
sharedSections | boolean | No | Whether the target is in a shared section |
sharedSectionId | string | No | ID of the shared section |
positionId | string | No | Position ID |
buttonId | string | No | Button ID (required when target is id) |
Set Active Page
ID: section_set_activePageId
Available in Workflow: Yes
Navigates a folder or shift-section to a specific page.
| Parameter | Type | Required | Description |
|---|---|---|---|
pageId | string | Yes | ID of the page to navigate to |
sharedSections | boolean | No | Whether the target is a shared section |
sharedSectionId | string | No | ID of the shared section |
positionId | string | No | Position ID (defaults to current position) |
sectionId | string | No | Section ID (defaults to current parent section) |
Set Popover State
ID: popover_set_state
Available in Workflow: No
Opens, closes, or toggles a popover. Can target local, foreign, or shared popovers.
| Parameter | Type | Required | Description |
|---|---|---|---|
popoverId | string | Yes | ID of the popover |
command | 'open''closed''toggle' | Yes | State to apply |
positionId | string | No | Position ID (defaults to current position) |
sharedSections | boolean | No | Whether the target is a shared section |
sharedSectionId | string | No | ID of the shared section |
Take Route
ID: route_execute
Available in Workflow: Yes
Executes one or more routing changes simultaneously.
| Parameter | Type | Required | Description |
|---|---|---|---|
mappings | RouteMapping[] | Yes | Array of route mappings to apply |
Each mapping in mappings:
| Field | Type | Required | Description |
|---|---|---|---|
id | string | Yes | Route ID |
route_destinationPortId | string | Yes | Destination port |
route_sourcePortId | string | null | Yes | Source port; null to unroute |
route_ignoreLock | boolean | No | Whether to bypass route locks |
Execute Routing Preset
ID: salvo_execute
Available in Workflow: Yes
Executes a saved routing preset (salvo), applying multiple routes at once.
| Parameter | Type | Required | Description |
|---|---|---|---|
salvoId | string | Yes | ID of the routing preset to execute |
Set Connection Enabled
ID: connection_set_enabled
Available in Workflow: Yes
Enables, disables, or toggles one or more connections.
| Parameter | Type | Required | Description |
|---|---|---|---|
connectionIds | string[] | '*' | Yes | List of connection IDs, or '*' for all |
enabled | 'true''false' 'toggle' | Yes | State to apply |
Set Workflow Enabled
ID: workflow_set_enabled
Available in Workflow: Yes
Enables, disables, or toggles one or more workflows.
| Parameter | Type | Required | Description |
|---|---|---|---|
workflowIds | string[] | '*' | Yes | List of workflow IDs, or '*' for all |
enabled | 'true' | 'false' | 'toggle' | Yes | State to apply |
Set Surface Settings
ID: assign_surface_to_position
Available in Workflow: Yes
Updates settings on one or more surfaces: coordinates, position assignment, brightness, or display state.
| Parameter | Type | Required | Description |
|---|---|---|---|
subjectType | 'self' 'surfaceId''fromPositionSelf''fromPositionId' | Yes | How to select the target surface(s) |
subjectId | string | Conditional | Surface ID (when subjectType is surfaceId) or Position ID (when fromPositionId) |
setCoordinates | boolean | No | Enable coordinate update |
x | number | No | X coordinate |
y | number | No | Y coordinate |
setPosition | boolean | No | Enable position assignment update |
clearPosition | boolean | No | Remove position assignment |
positionId | string | null | No | Position ID to assign |
setDisplayBrightness | boolean | No | Enable brightness update |
displayBrightness | number | variable | No | Brightness level (0–100) |
setDisplayEnabled | boolean | No | Enable display on/off update |
displayEnabled | boolean | No | Whether the display should be on |
subjectType values:
self— the surface that triggered this actionsurfaceId— a specific surface by IDfromPositionSelf— all surfaces assigned to the current positionfromPositionId— all surfaces assigned to a specific position
Cuelist Command
ID: cuelist_command
Available in Workflow: Yes
Sends a navigation or execution command to a cuelist.
| Parameter | Type | Required | Description |
|---|---|---|---|
cuelistId | string | Yes | ID of the cuelist |
command | 'SELECT_NEXT' | 'SELECT_PREVIOUS' | 'EXECUTE_SELECTED' | Yes | Command to send |
Commands:
SELECT_NEXT— advance the selection to the next cueSELECT_PREVIOUS— move the selection to the previous cueEXECUTE_SELECTED— execute the currently selected cue
Trigger Button
ID: button_trigger
Available in Workflow: Yes
Programmatically triggers a press, release, or press-then-release on another button.
| Parameter | Type | Required | Description |
|---|---|---|---|
buttonId | string | Yes | ID of the button to trigger |
action | 'press''release''pressRelease' | Yes | Action to perform (default: pressRelease) |
delayMs | number (0–10000) | No | Delay in ms between press and release (default: 100) |
sharedSections | boolean | No | Whether the target is in a shared section |
sharedSectionId | string | No | ID of the shared section |
positionId | string | No | Position ID (defaults to current position) |
Logout Session
ID: session_logout
Available in Workflow: No
Logs out all authenticated users on a position, clearing their session state.
| Parameter | Type | Required | Description |
|---|---|---|---|
positionId | string | No | Position to log out (defaults to current position) |
